Product Detail

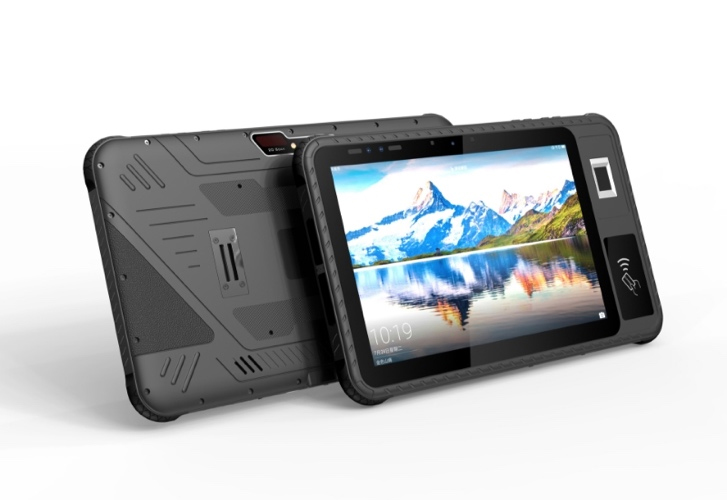

Fingerprint ID Card Triple-proof Tablet

Fingerprint ID Card Triple-proof Tablet

Product  Overview

It is a durable, reliable smart tablet that integrates biometrics. The tablet has fingerprint ID card recognition, face recognition, RFID , NFC, ID card recognition, QR code, and original notebook electromagnetic screen functions, and is widely used in medical, public security, education, justice and other mobile scenarios that require identity verification .

Product  Features

       Powerful fingerprint identity authentication: Our fingerprint algorithm is combined with a capacitive sensor, the fingerprint imaging is clear, and the collection and comparison of various types of fingerprints are good.

        Accurate facial recognition algorithm: binocular cameras can be integrated to achieve liveness recognition.

        Electromagnetic screen technology: optional 2 048 pressure-sensitive electromagnetic screen to achieve paperless application

        Ultra-long standby time: 8000 mAh battery capacity, can last for 10 hours

        Open operating system : Android 10 system, customizable applications

        Super waterproof: IP65 waterproof grade

       Product Technical Parameters

Type

Item

Description

Function Configuration

Host    control

MTK6765 64 -bit 8 -core 12nm process Arm Cortex-A53 operating system, maximum frequency 2.3GHz

Inside  live

4G (standard), optional 6G / 8G

EMMC

64G (standard), optional 1 28G

Storage expansion

Supports up to 128GB SD /TF card expansion

WiFi

802.11a/b/g/n/ac

Camera

Preset 5 million

Rear 13MP , auto focus Cold and warm light dual flash

3G

WCDMA-IMT-2000/WCDMA-PCS-1900/WADMA-CLR-850/WCDMA-GSM-900

4G

B1/B3/B5/B7/B8/B20/B34/B38/B39/B40/B41

system

Android 10.0 , Android 11

Display System

Show Show screen

10.1 inches 800*1280 (1920*1200 optional) Resolution HD IPS

touchscreen

10 -point touch, G+G touch screen

Electromagnetic screen

Support 4096 pressure-sensitive original handwriting signature

language

English, French, German, Italian, Japanese, Korean, Russian, Spanish, Polish, Czech, Simplified Chinese and other languages



other

Gravity sensor Gyroscope

support

GPS

support BeiDou, Galileo, GLONASS GPS

Fingerprint recognition

Support 256*360pixel 500DPI fingerprint collection device interface complies with " GA/T1011-2012 General Technical Requirements for Resident Identity Card Fingerprint Collectors", and can provide the test report commissioned by China Security Technology Certification Center. The fingerprint algorithm complies with "Resident Identity Card Fingerprint Collection and Comparison Technical Specifications GA1012-2012 " , and has a fingerprint algorithm test report issued by the Security and Police Electronic Products Quality Inspection Center of the Ministry of Public Security. At the same time, it is necessary to provide the "Resident Identity Card Fingerprint Registration Algorithm Software Use License Contract" signed with the First Research Institute of the Ministry of Public Security.

Read second-generation ID card

The latest ID card micro module ( optional)

QR code scanning

Support ( optional)

NFC

Support NXP 547 ( optional)

Bluetooth

Yes, supports Bluetooth 5.0

RFID

Support 125K 915M various frequency bands RFID ( optional)

FM

have

Battery Type

3.8V/8000mAh rechargeable polymer battery

Time of use

Wifi time About 10H

Frequency band

2G:EGSM900/DCS1800/PCS1900/GSM850 3G:WCDMA-IMT2000/WCDMA-PCS1900/WCDMA-CLR850/WCDMA-GSM900 4G:B1/3/B5/B7/B8/B20/B34/B38/B39/B40/B41

Device

Body

Waterproof grade

IP65

Power adapter

Input: AC100-240V.50-60HZ , Output DC 5V 2A

Color

white body optional

Size

300*183*18mm
